Компресор Vitals 160113

Опис

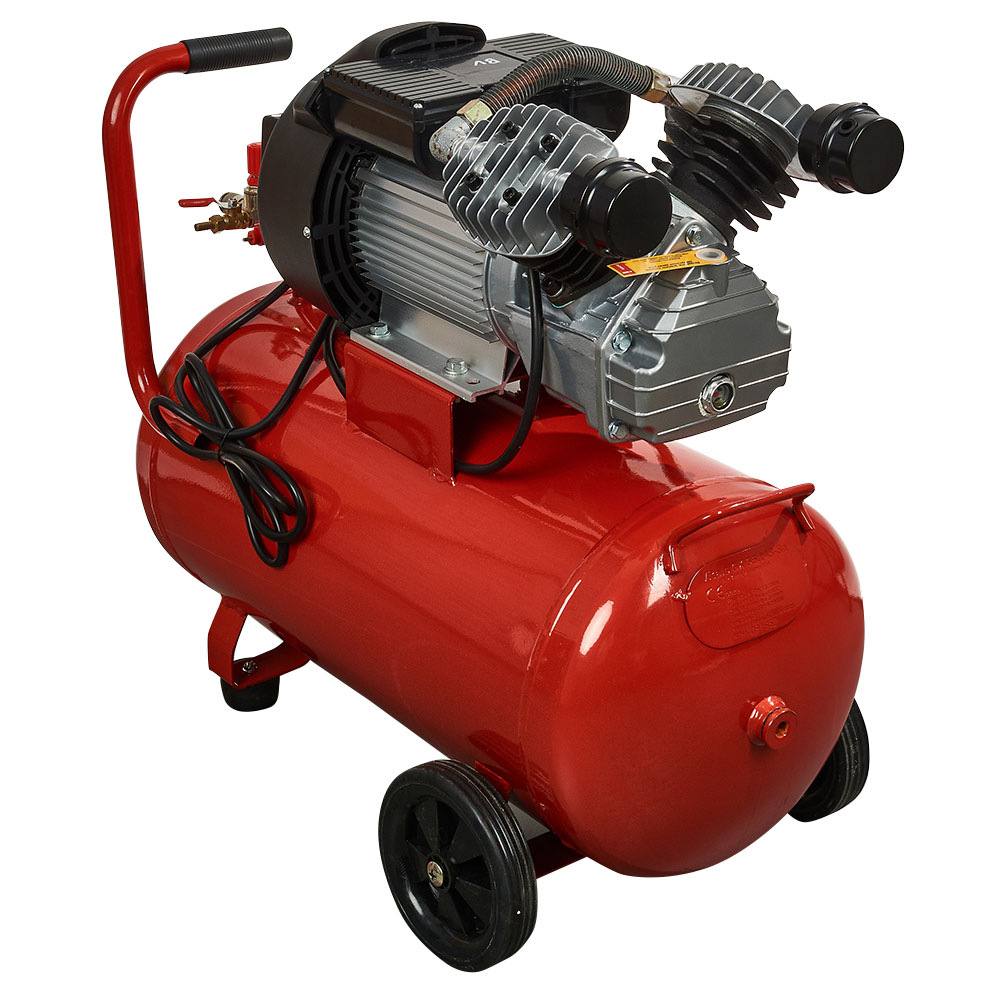

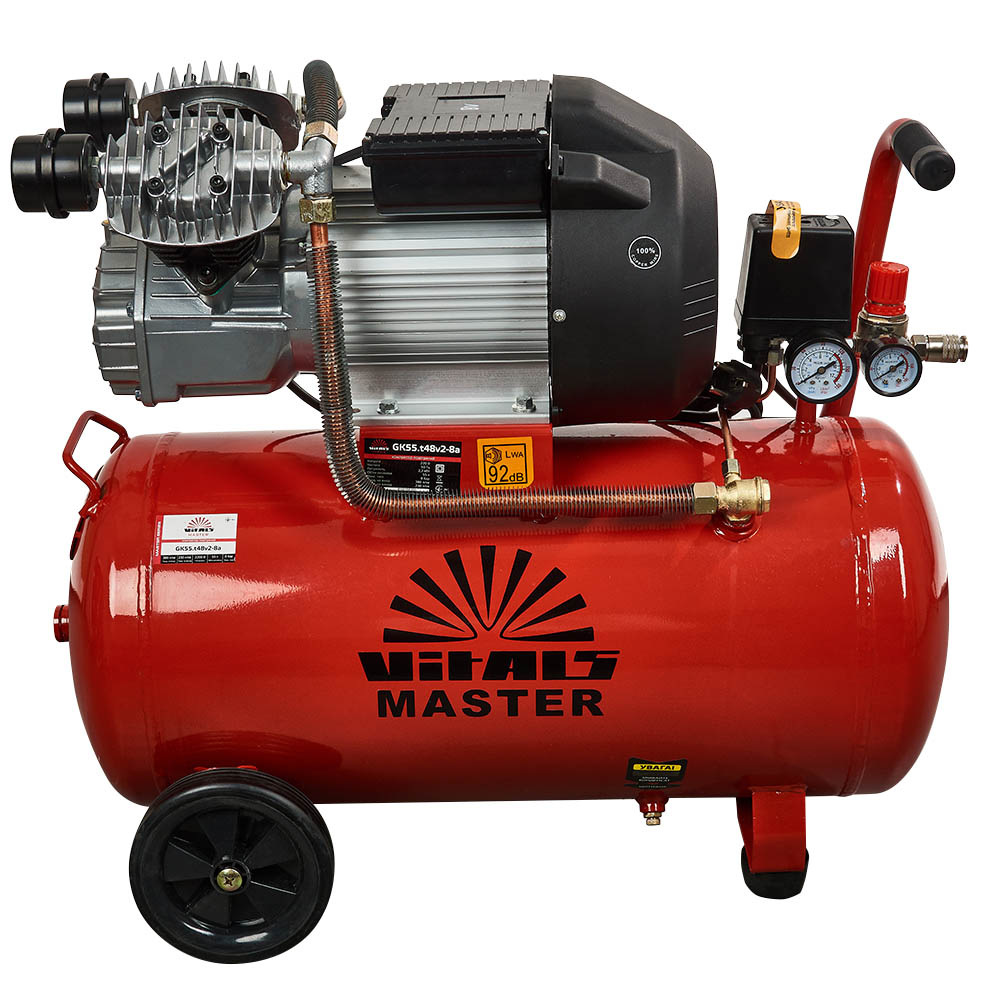

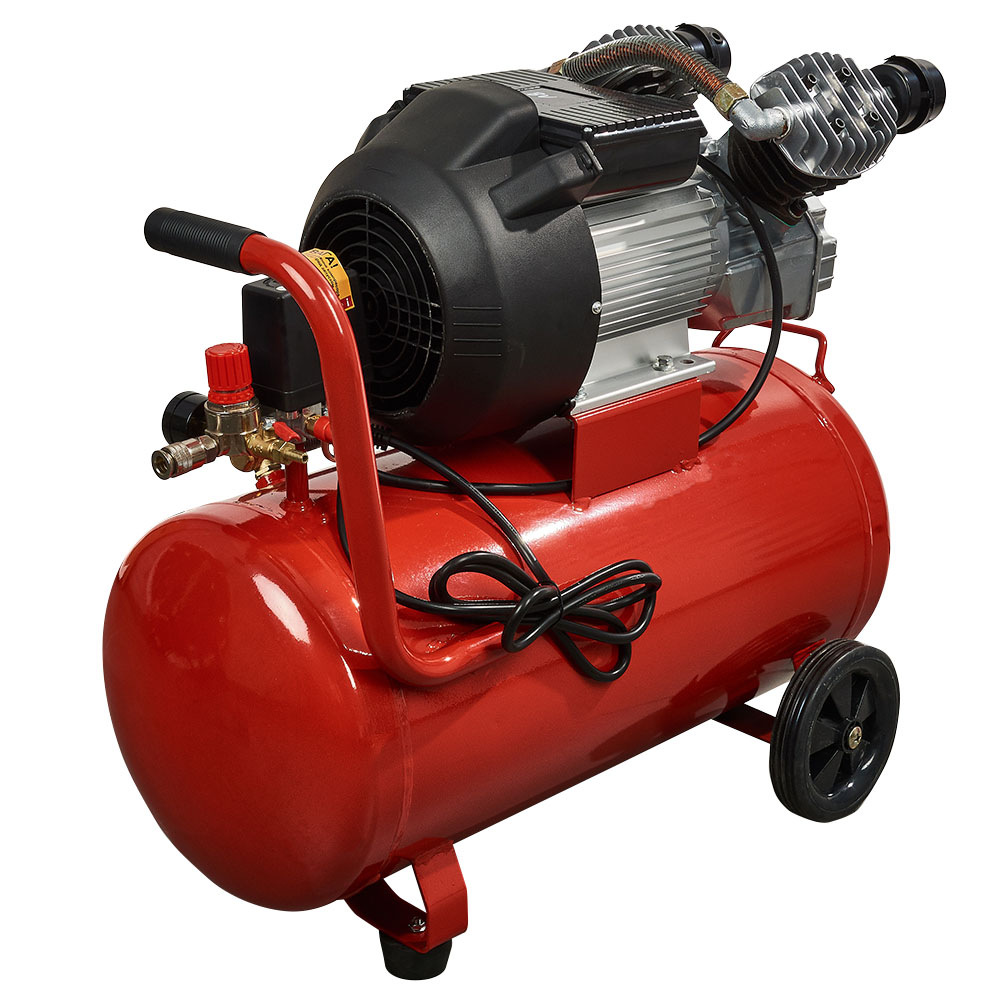

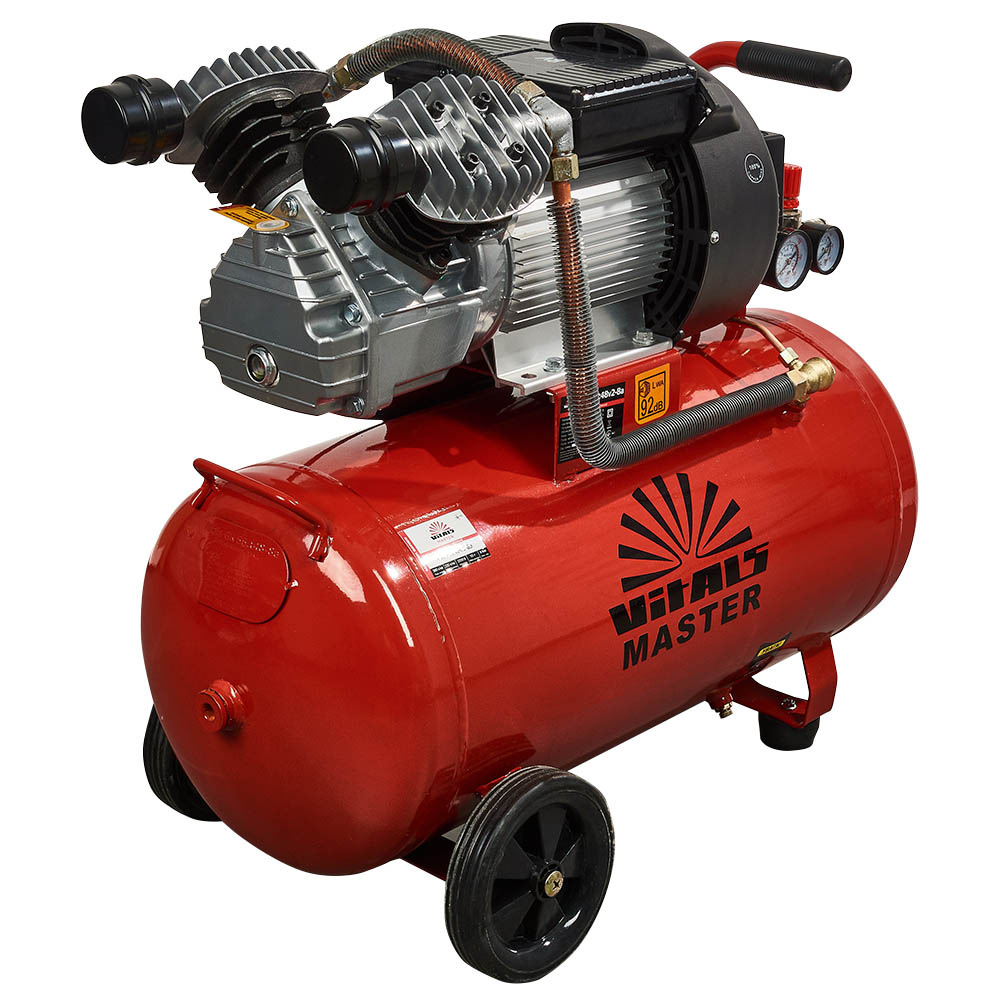

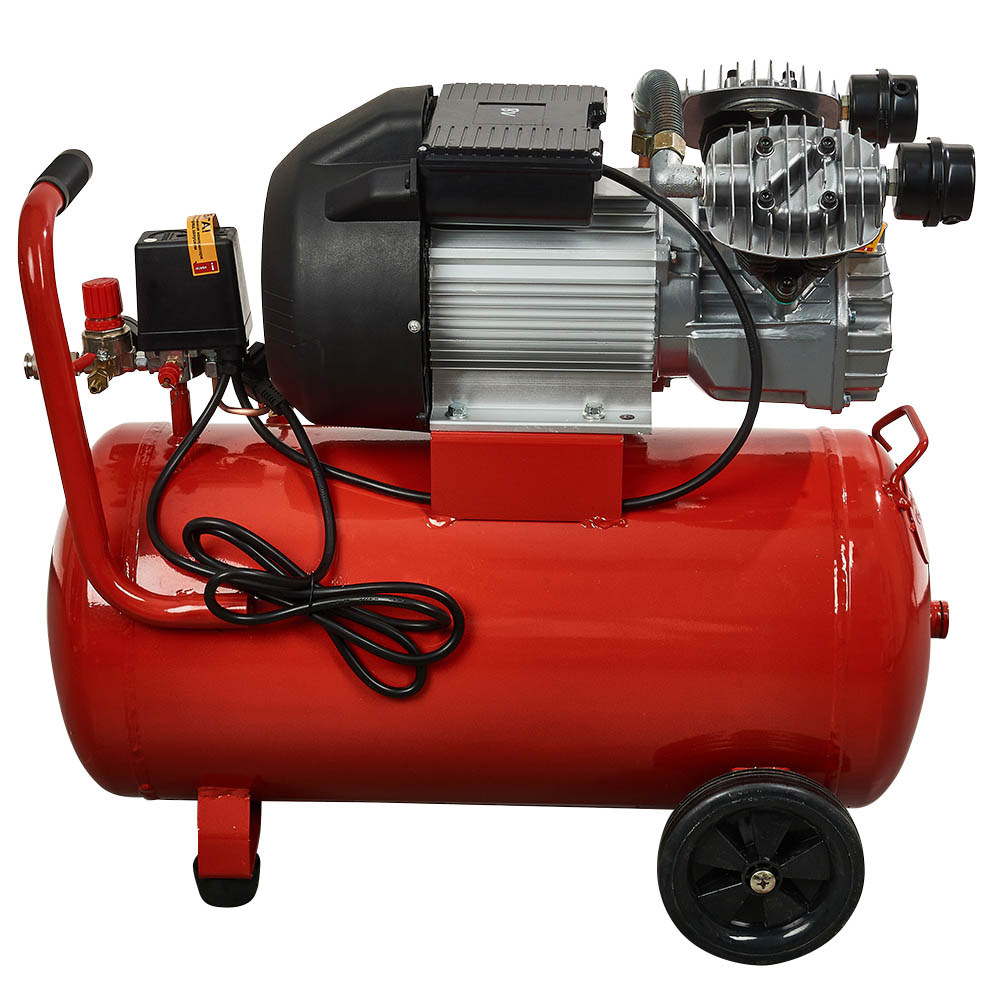

The Vitals Master GK55.t48v2-8a air compressor is designed for pneumatic tools, spray guns, and inflation equipment. The model is equipped with a 2200 W asynchronous motor and a twin-cylinder piston system. The 50 L receiver and performance up to 380 L/min provide stable compressed air supply under load. The mobile construction with large wheels simplifies transportation around workshops and job sites.

Features The Vitals Master GK55.t48v2-8a air compressor is designed for supplying compressed air to pneumatic equipment and tools. The model is suitable for workshops, garages, automotive service areas, and construction sites. The compressor is equipped with a 2.2 kW asynchronous electric motor and a V-type twin-cylinder piston system. Air intake capacity reaches 380 L/min, while maximum operating pressure is up to 8 bar. The 50 L receiver helps maintain stable compressed air supply during pneumatic tool operation. Two pressure gauges allow monitoring pressure inside the receiver and at the output line. The model features European-standard quick-connect fittings for tool connection. The pressure regulator helps adjust operating pressure for different equipment types, while the safety valve supports secure system operation. The construction includes a large protective cover, durable wheels, and a vibration-damping base. The cast-iron shaft and cast-iron piston group components contribute to stable operation under load and extended service life of the mechanisms. Technologies (used) Twin-cylinder piston system V-type cylinder arrangement Direct drive Asynchronous electric motor European-standard quick-connect fittings Pressure regulation system Safety pressure valve Vibration-damping base Cast-iron shaft and piston group Technical specifications Type: air compressor Brand: Vitals Master Model: GK55.t48v2-8a Compressor type: piston, twin-cylinder Drive type: direct drive Motor type: asynchronous Rated power: 2.2 kW Power supply: 230 V Maximum operating pressure: 8 bar Pressure switch range: 6-8 bar Air intake capacity: 380 L/min Air output capacity: 230 L/min Receiver capacity: 50 L Motor speed: 2850 rpm Oil crankcase capacity: 1.0 L Outlet fitting diameter: 1/8" Protection class: IP54 Insulation class: B Operating mode: S2 (30 min) Noise level: 78 dB Package dimensions: 715×340×695 mm Net weight: 37.3 kg Gross weight: 40.8 kg Who it's for For automotive service workers For workshops and garages For pneumatic tool operation For painting applications For semi-professional use Conclusion The Vitals Master GK55.t48v2-8a combines a twin-cylinder piston system, a 50 L receiver, and performance up to 380 L/min for operation with various types of pneumatic equipment. The model is suitable for workshops, service areas, and applications requiring stable compressed air supply.
